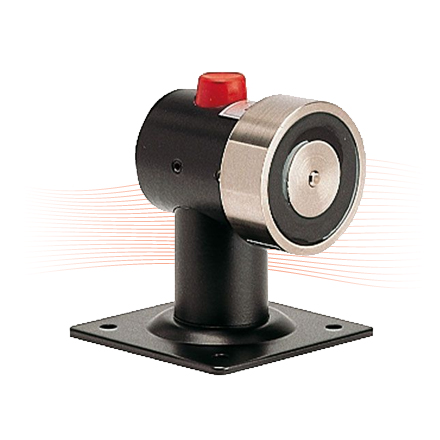

EFFEFF 838BW1U electric door holding magnet 800N floor 70mm, wall 115mm, interrupter
Effeff 838/839BW1U-F90
Effeff
Round magnets for holding doors open are especially adjusted for effeff-arrester systems and have the required approval.
Wall/floor mounting versions with spacer, convertible. With interrupter.
100%ED.
DIBt certificate Z 6.5-430
Attributes:
838/839BW1U-F90 data
| Net weight | 1.000 kg |
| Wall distance | 115 mm |
| Floor distance | 70 mm |
| Voltage code | F9 |
| Voltage | 24V DC |
| Nominal holding force | 800 N |
| Rated power consumption | 2.1 W |
| DC current consumption stab 24V | 90 mA |
| Warranty | 3 years |
The table shows data of the product.
