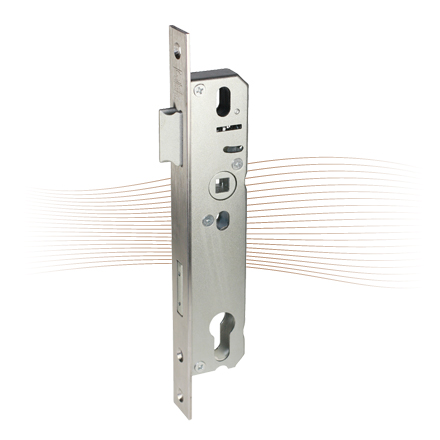

Mechanical mortise lock for tubular frame exterior doors.

Without rating.
According to DIN EN 12209-2004-03.

Cylinder profile (PC).
Metal lock case, metal latch and dead bolt.
The latch bolt can be operated by the key also.
25-40 mm backset (B)
92 mm handle-key distance (D)
8 mm follower.
Reversible, DIN right or DIN left.

Face plate width: 24 mm, angular
