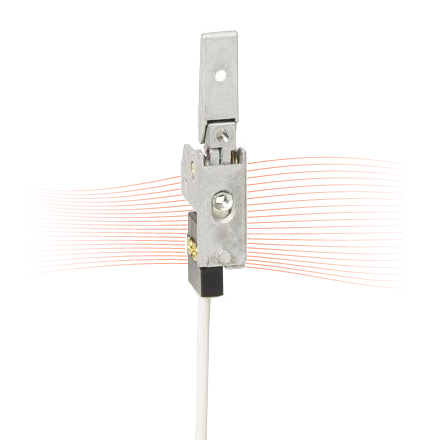

Bolt switch contacts are suitable for monitoring door locking. The bolt switch contact has to be fitted into the frame striking plate in such a way that it is activated by the deadbolt. The signal can be evaluated or displayed in equipment such as alarm systems, building monitoring systems, visual and acoustic signal generators, etc.
Special striking plates are available for combination with electric strikes.

Adjustable switching point.
Easy installation in existing steel door frames through the deadbolt aperture using the supplied fitting tool and drilling template.
Unlimited bolt throw.

Min. contact rating 1.5V DC / 0.10 mA.
Max. contact rating 30 V DC / 100 mA.
VdS G100023
