EFFEFF 097 KiW short bracket striking plate universal ducat gold

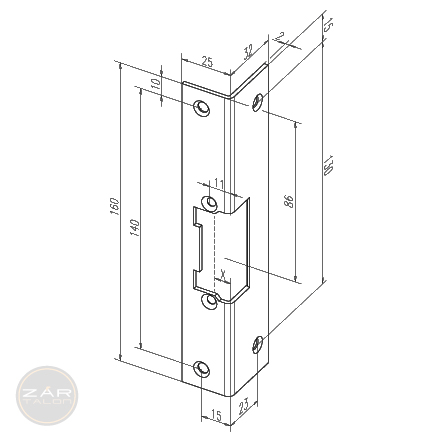

EFFEFF 097 KiW short bracket striking plate universal ducat gold EFFEFF 097 KiW short bracket striking plate universal ducat gold dimensional drawing

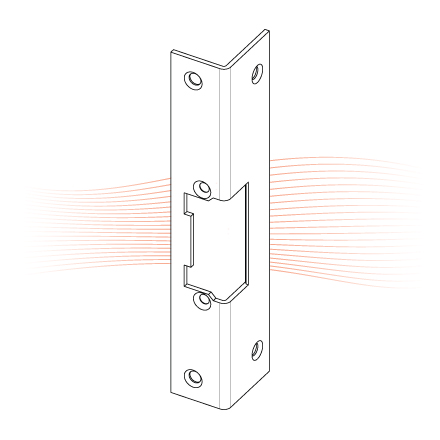

effeff 097 kiW striking plate

Effeff

Bracket striking plates are mainly used in wooden door frames. Electric strike and dead bolt cutouts of different size and varying position enable a combination with all established mortise locks.

Angled short bracket striking plates with latch bolt cutout.
Short striking plates without dead bolt cutout.
Universal left-right model.
2 mm material thickness.

Color gold-colored
Place of origin Germany
Brand EFFEFF
