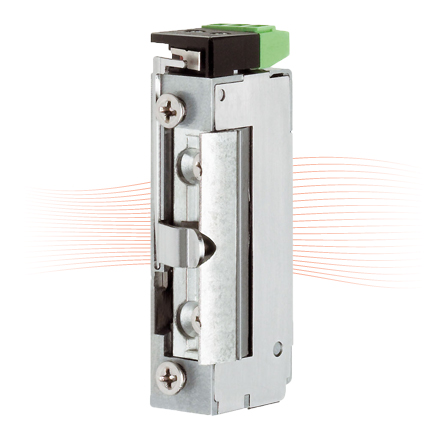

EFFEFF 11805RR electric strike 10-24V AC/DC universal

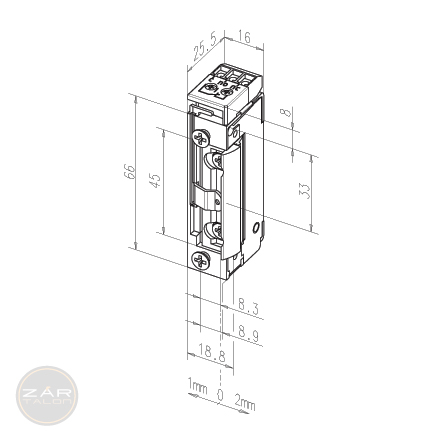

EFFEFF 11805RR electric strike 10-24V AC/DC universal EFFEFF 11805RR electric strike 10-24V AC/DC universal dimensional drawing

effeff 11805RR electric strike

Effeff

Standard, compact size electric strike with rounded (radius) and adjustable latch (FF, FaFix).
Fail locked operation.
The door can only be opened while a contact is made. In alternating current operation, a humming noise is audible. In direct current operation, there is no noise. When mounting with a throw-open spring or throw-open bolt, the door is opened visibly after a contact is made.

Compatible with all frequently used mortise locks.
Can be used with all common striking plates, even with those made for plastic frames.
Symmetrical structure. DIN right/left and horizontal installation.

Diode (05)
Monitoring contact (RR)

Place of origin Germany
Brand EFFEFF
