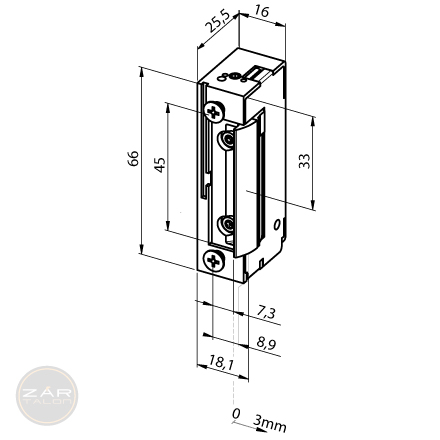

EFFEFF 118F.13 fire protection electric strike 10-24V AC/DC universal EFFEFF 118F.13 fire protection electric strike 10-24V AC/DC universal dimensional drawing

effeff 118F.13 fire protection electric strike

Effeff

Series 118F is a completely new development and the smallest fire protection electric strike of the world, 66 x 16 x 25.5 mm.
Certified and approved security electric strike for fire rated doors.
P-120003624 certificate. ProFix 2 version.

3 mm FaFix adjustability.

Fail locked operation.
The door can only be opened while a contact is made. In alternating current operation, a humming noise is audible. In direct current operation, there is no noise. When mounting with a throw-open spring or throw-open bolt, the door is opened visibly after a contact is made.

Compatible with all frequently used mortise locks.
Can be used with ProFix 2 striking plates.

With coil 10-24V AC/DC continuous duty up to 13V.
With coil 22-42V AC/DC continuous duty up to 26V.
Symmetrical structure. DIN right/left and horizontal installation.

Certified according to DIN EN 14846:2008-11.

Adjustable latch (FF, FaFix)
Bipolar diode (05)

Place of origin Germany
Brand EFFEFF
