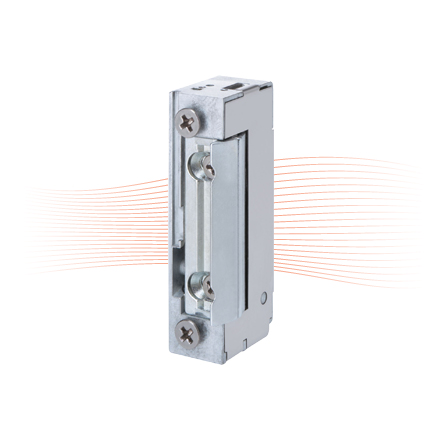

EFFEFF 118S05 smoke protection electric strike 10-24V AC/DC universal

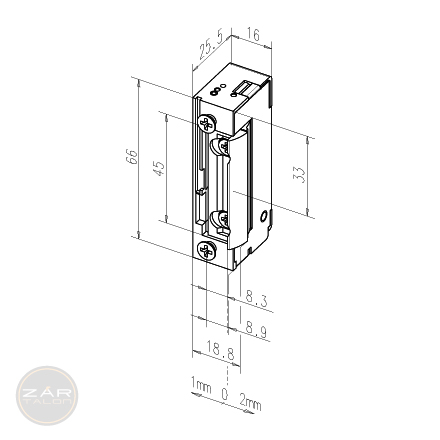

EFFEFF 118S05 smoke protection electric strike 10-24V AC/DC universal EFFEFF 118S05 smoke protection electric strike 10-24V AC/DC universal dimensional drawing

effeff 118S05 smoke protection electric strike

Effeff

The smallest smoke protection electric strike in the world, 66 mm x 16 mm x 25.5 mm.

Symmetrical structure compact electric strike for smoke protection doors with rounded (radius) and adjustable latch (FF, FaFix).
Fail locked operation.
The door can only be opened while a contact is made. In alternating current operation, a humming noise is audible. In direct current operation, there is no noise. When mounting with a throw-open spring or throw-open bolt, the door is opened visibly after a contact is made.

Compatible with DIN 18250 mortise locks.
Can be used with all common striking plates, even with those made for plastic frames.

With coil 10-24V AC/DC continuous duty up to 13V.
With coil 22-42V AC/DC continuous duty up to 26V.
DIN right/left and horizontal installation.

Diode (05)

Place of origin Germany
Brand EFFEFF
