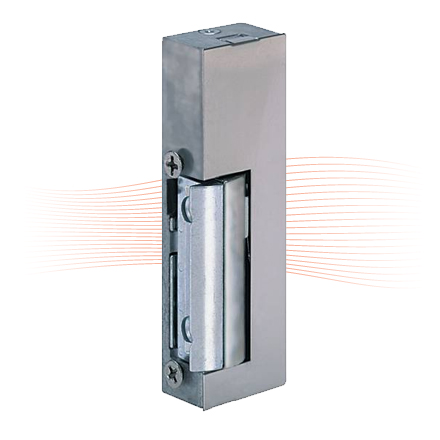

EFFEFF 119E electric strike 6-12V AC/DC universal

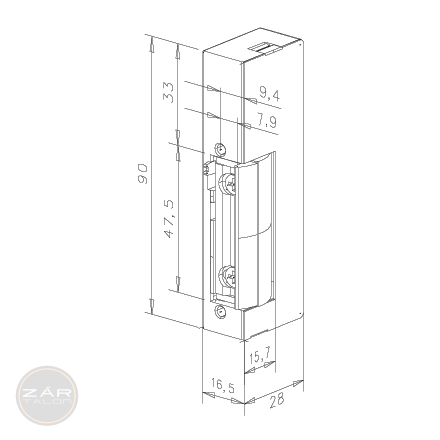

EFFEFF 119E electric strike 6-12V AC/DC universal EFFEFF 119E electric strike 6-12V AC/DC universal dimensional drawing

effeff 119E electric strike

Effeff

Universal narrow desgin electric strike with rounded (radius) and adjustable latch (FF, FaFix).
Fail locked operation.
The door can only be opened while a contact is made. In alternating current operation, a humming noise is audible. In direct current operation, there is no noise. When mounting with a throw-open spring or throw-open bolt, the door is opened visibly after a contact is made.

Slim lock case (16.5 mm width).
119EA mirrored versions are also available.
A range of different slim striking plates are available.

DIN right and left installation thanks to 180° rotation.

Mechanical unlocking (E)

Place of origin Germany
Brand EFFEFF
