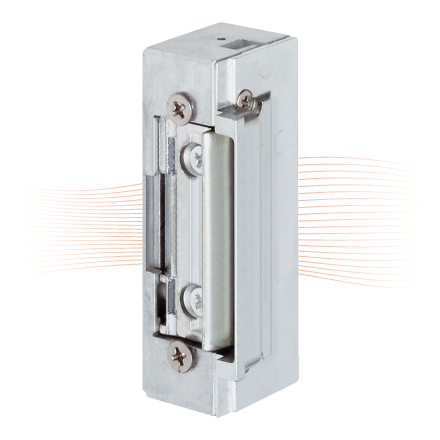

EFFEFF 126.10 electric strike 6-12V AC/DC universal ProFix 1

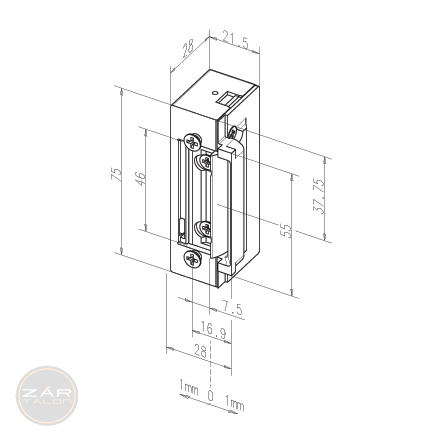

EFFEFF 126.10 electric strike 6-12V AC/DC universal ProFix 1 EFFEFF 126.10 electric strike 6-12V AC/DC universal ProFix 1 dimensional drawing

effeff 126.10 electric strike

Effeff

Standard electric strike with rounded and adjustable latch (FF, FaFix).
Hold-open operation.
The latch bolt controlled locking pin in the centre of the electric strike latch keeps the electric strike unlocked until the door is opened, even after contact has been made.
ProFix 1 version.

During the opening procedure the latch turns back into the lock case, thus the usual door frame cutout at the latch is not needed.

Compatible with ProFix 1 striking plates.
DIN right and left installation thanks to 180° rotation.
Symmetrical structure.

Place of origin Germany
Brand EFFEFF
