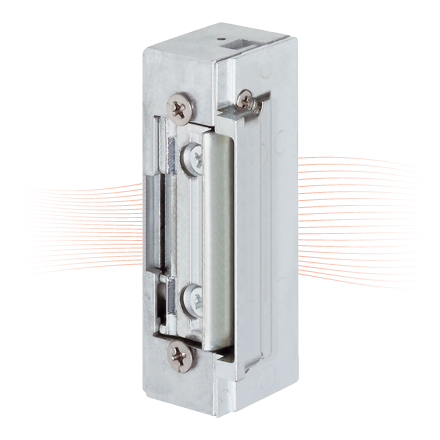

EFFEFF 136.61 electric strike 12V DC universal ProFix 1

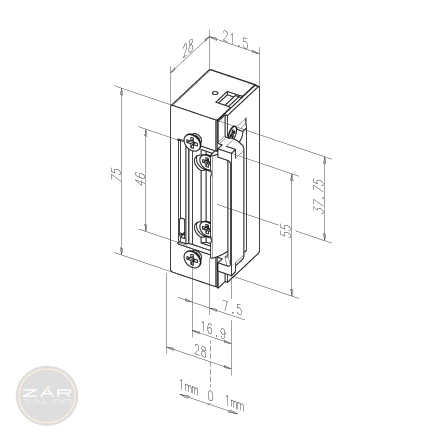

EFFEFF 136.61 electric strike 12V DC universal ProFix 1 EFFEFF 136.61 electric strike 12V DC universal ProFix 1 dimensional drawing

effeff 136.61 electric strike

Effeff

Standard electric strike with rounded and adjustable latch (FF, FaFix).
Fail unlocked operation.
The electric strike is locked for as long as the power is on. If the power is switched off or if there is a power cut, the electric strike latch can be moved and the door can be opened.
ProFix 1 version.

During the opening procedure the latch turns back into the lock case, thus the usual door frame cutout at the latch is not needed.

Compatible with ProFix 1 striking plates.
DIN right and left installation thanks to 180° rotation.
Symmetrical structure.

Diode (05)
Monitoring contact (RR)

Place of origin Germany
Brand EFFEFF
