EFFEFF 143.10 fire protection electric strike 12/24V AC/DC left ProFix 1

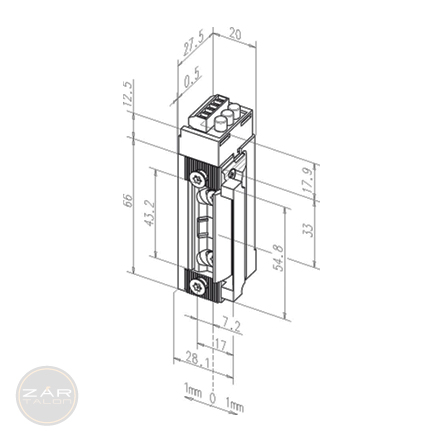

EFFEFF 143.10 fire protection electric strike 12/24V AC/DC left ProFix 1 EFFEFF 143.10 fire protection electric strike 12/24V AC/DC left ProFix 1 dimensional drawing

effeff 143.10 fire protection electric strike

Effeff

Certified and approved security electric strike for fire rated doors.
P-120003624 certificate (MPA Dortmund). DIN EN 14846:2008
ProFix 1 version.

Repositionable connection. 12/24V voltage AC and DC operation.
Resistant to continuous current across the entire voltage range.
FaFix adjustable by 2 mm. Radius latch.
Integrated surpressor diode.
Preload modes 400N or 800N can be set.

Surpressor diode (05)
Adjustable latch (FF, FaFix)

8000N

Place of origin Germany
Brand EFFEFF
