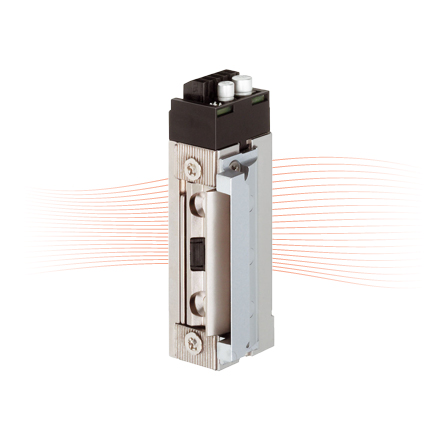

effeff 143.20 fire protection electric strike
Effeff
Certified and approved security electric strike for fire rated doors.
P-120003624 certificate (MPA Dortmund). DIN EN 14846:2008
ProFix 1 version.
Repositionable connection. 12/24V voltage AC and DC operation.
Resistant to continuous current across the entire voltage range.
FaFix adjustable by 2 mm. Radius latch.
Integrated surpressor diode.
Preload modes 400N or 800N can be set.
Surpressor diode (05)
Monitoring contact (RR)
Adjustable latch (FF, FaFix)
8000N
