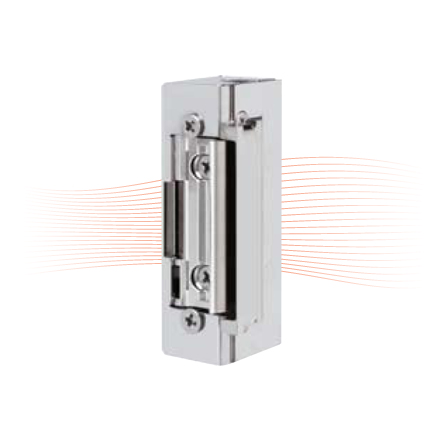

Water resistant compact electric strikes with rounded latch.
Fail locked operation.
The door can only be opened while a contact is made. In alternating current operation, a humming noise is audible. In direct current operation, there is no noise. When mounting with a throw-open spring or throw-open bolt, the door is opened visibly after a contact is made.
ProFix 1 version.

Suitable for outdoor use thanks to water resistant construction (wd).

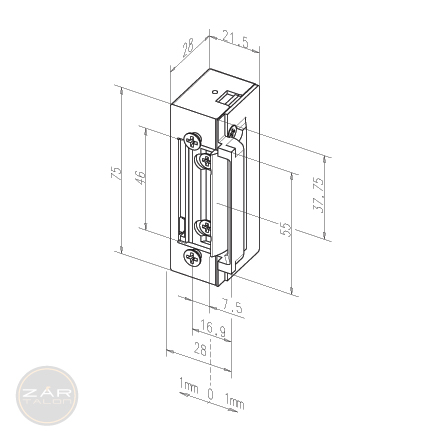

Compact size lock case (75 x 20,5 x 28 mm).
Rounded latch, FaFix 2 mm adjustability.

With coil 10-24V AC/DC continuous duty up to 13V.
With coil 22-42V AC/DC continuous duty up to 26V.
Symmetrical structure.

Adjustable latch (FF, FaFix)
Mechanical unlocking (E)
Diode (05)
