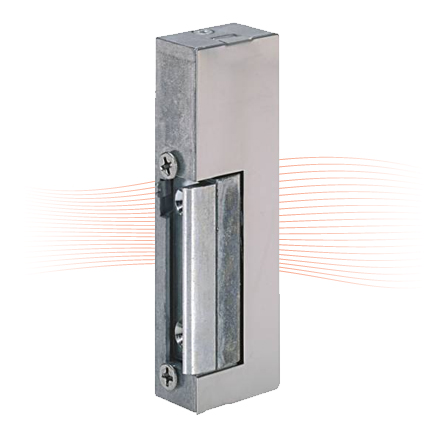

EFFEFF 19.200 electric strike 6-12V AC/DC universal

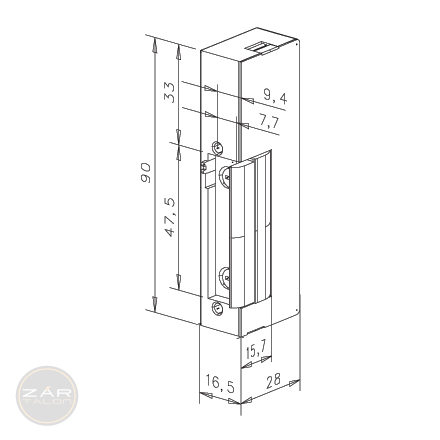

EFFEFF 19.200 electric strike 6-12V AC/DC universal EFFEFF 19.200 electric strike 6-12V AC/DC universal dimensional drawing

effeff 19.200 electric strike

Effeff

Narrow design electric strike with adjustable latch (FF, FaFix).
Fail locked operation.
The door can only be opened while a contact is made. In alternating current operation, a humming noise is audible. In direct current operation, there is no noise. When mounting with a throw-open spring or throw-open bolt, the door is opened visibly after a contact is made.

Slim lock case (16.5 mm width).
A range of different slim striking plates are available.

DIN right and left installation thanks to 180° rotation.

Place of origin Germany
Brand EFFEFF
