EFFEFF 31205 sliding door electric strike 12V DC universal

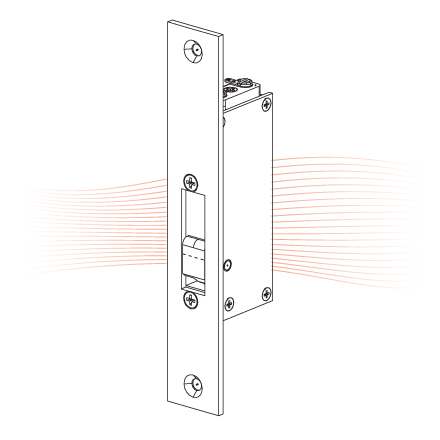

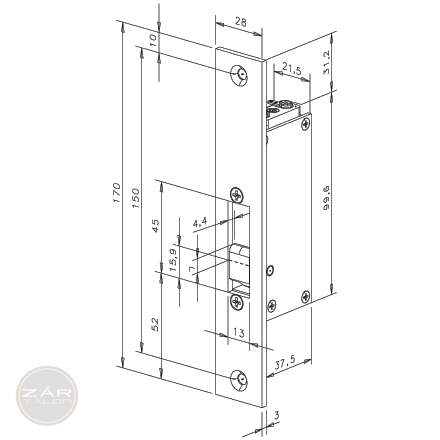

EFFEFF 31205 sliding door electric strike 12V DC universal EFFEFF 31205 sliding door electric strike 12V DC universal dimensional drawing

effeff 31205 sliding door electric strike

Effeff

Sliding door electric strikes are water resistant, so they are also suitable for outdoor use. With roofless facilities, where rain and snow can directly contact the lock, we suggest the use of a heating foil as an accessory, which effectively prevents icing.
Effeff sliding door strikes and hook bolt mortise locks were functionally and technically adapted to each other.
Fail unlocked operation.
The electric strike is locked for as long as the power is on. If the power is switched off or if there is a power cut, the electric strike latch can be moved and the door can be opened.

When using a different type of hook mortise lock, the following must be observed:
- The rotating point of the hook bolt has to be in a deep position.
- The hook bolt must be easily movable upwards.
- The position of the hook bolt must not be visible from the outside. The cylinder has the sole function of elevating the hook bolt.
- Only the hook bolt should be adjusted, not the latch bolt of the strike.

Diode (05)

Place of origin Germany
Brand EFFEFF
