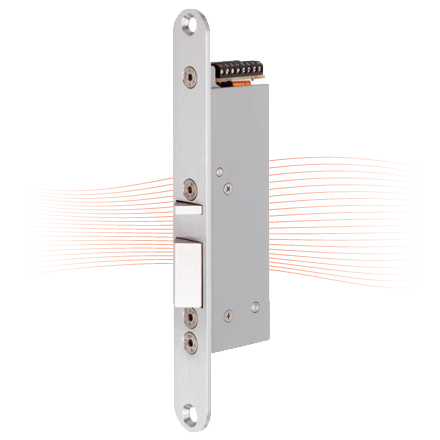

The latch prism is held in the locked position by spring. When closing the door, the prism snaps into the striking plate. Putting the strike under current makes the prism fixed and the door becomes locked.

For the models with built-in monitoring contact activation of the latch can be narrowed down (controlled through the door contact) to the "door locked" status.
The integrated anchor contact (25V / 1A) can be used for electronic monitoring of the locking status.

Prerequisities:
Swing door closer with adjustable strength and speed for the proper positioning of the door leaf in the latch space.

DIN left and right usability. Max.latch preload 5000N.

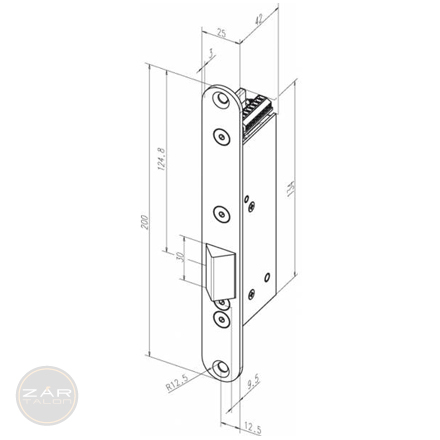

3 mm distance between edge and striking plate (min. 2 mm, max. 4,5 mm).
4 distance plates. Built-in monitoring contact.

Diode (05)
Monitoring contact (RR)
