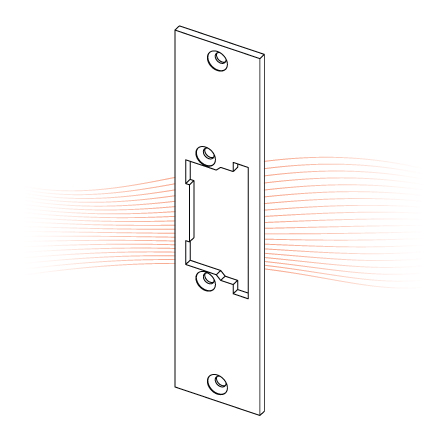

EFFEFF 522 kF ProFix 1 short striking plate universal stainless steel

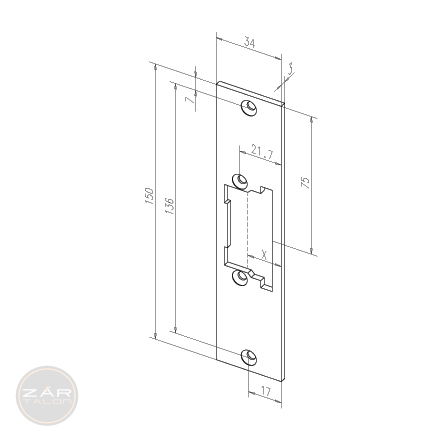

EFFEFF 522 kF ProFix 1 short striking plate universal stainless steel EFFEFF 522 kF ProFix 1 short striking plate universal stainless steel dimensional drawing

effeff 522 kF striking plate

Effeff

Flat striking plates are universal, so they can be used DIN-left and DIN-right too.
ProFix® is a combined system, consisting of a FaFix® electric strike with a latch bolt guide (latch bolt slide) integrated into the electric strike.
ProFix® can be used to standardise the frame recess / frame cutout. For the ProFix® striking plates ProFix® electric strikes are available, let it be standard (T0) doors or even smoke and fire protection doors.

ProFix 1.
Angled short flat striking plates with latch bolt cutout.
Universal left-right model.
3 mm material thickness.

Color silver
Place of origin Germany
Brand EFFEFF
