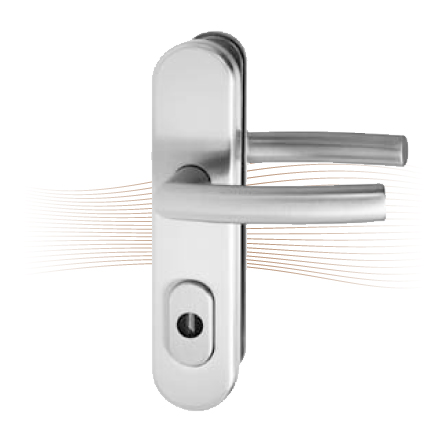

EFFEFF 809ZB05-35 security escutcheon, H-H 92, stainless steel
effeff 809ZB05 security fitting
Effeff
Knob-handle security fitting for full-leaf doors.
For normal depth mortise lock series 819.
Stainless steel version.
55-80 mm backset.
DO 20.3.01 DIN EN 179.
With extraction protected cylinder cutout.
9 mm follower.
Compatible split spindles (free and panic side) and fastening screws are to be ordered separately. Please see the accessories.
Attributes:
