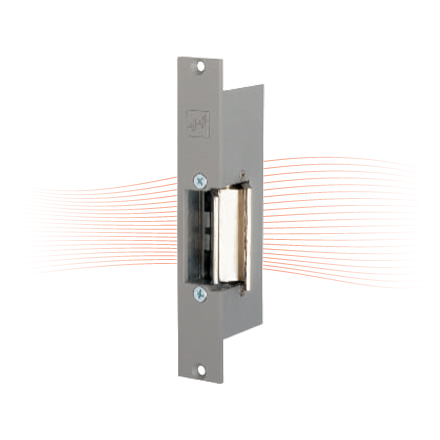

Electric strike latch designed especially for dead bolt locks: As opposed to standard electric strikes, when the door is open the electric strike latch is hinged open and therefore in the position to accept the bolt of the dead bolt lock.
Fail locked operation.
The door can only be opened while a contact is made. Without electric current the strike is immediately locked.
The function is also controlled by a securing pin in the case of fail-locked models. The door can only be locked if the securing pin is activated by the dead bolt.
When the door is closed, the door keeper is moved by the bolt into the closed position. Thus an unintentional locking of the open door can be avoided.

DIN right and left installation thanks to 180° rotation.
With 12/24V switch and supressor diode (e.g. for use with access control systems).
Thickness can be adjusted between 13-15 mm (FaFix).

Monitoring contact (RR)
