EFFEFF Z09-DBVB3 distance plate 235x24x3

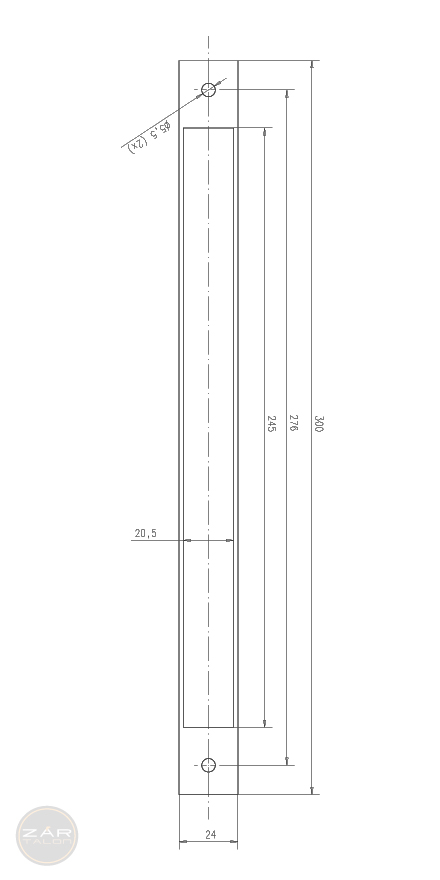

EFFEFF Z09-DBVB3 distance plate 235x24x3 EFFEFF Z09-DBRR3 distance plate 300x24x3 dimensional drawing

effeff Z09-DBVB distance holder plate

Effeff

The MEDIATOR system operates properly only if the distance between the face plate of the mortise lock and the striking plate of the electric strike is 2-5.5 mm.
If the distance is bigger, this can be decreased with this distance holder plate on the mortise lock side.

For full leaf MEDIATOR mortise locks.

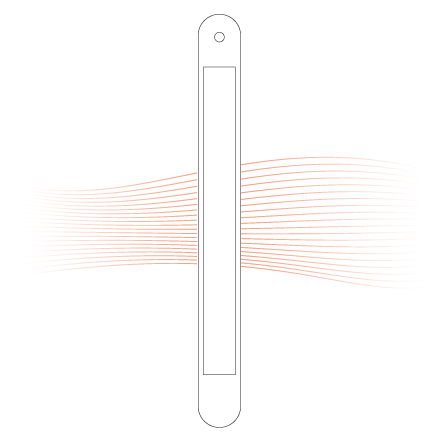

Rounded distance holder plate. 235 x 24 x 3 mm.

Place of origin Germany
Brand EFFEFF
