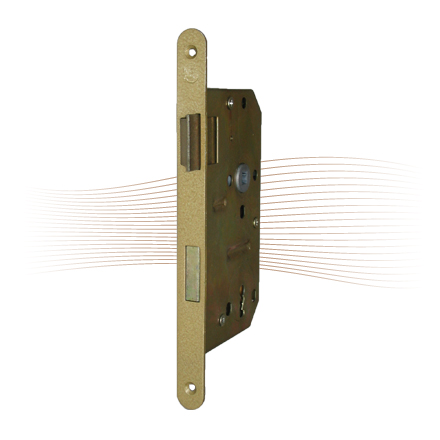

Mechanical mortise lock for interior and exterior doors.

Without rating.

Bitted key profile (BK), 1 bitted key.
Steel lock case, metal latch and dead bolt.
With some models the latch bolt can be operated by the key also.
55 mm backset (B)
72 mm handle-key distance (D)
8 mm follower.
Available models: DIN right, DIN left and reversible.

Face plate length: 220-235 mm
Face plate width: 18-20 mm, rounded, TGL/DIN.
